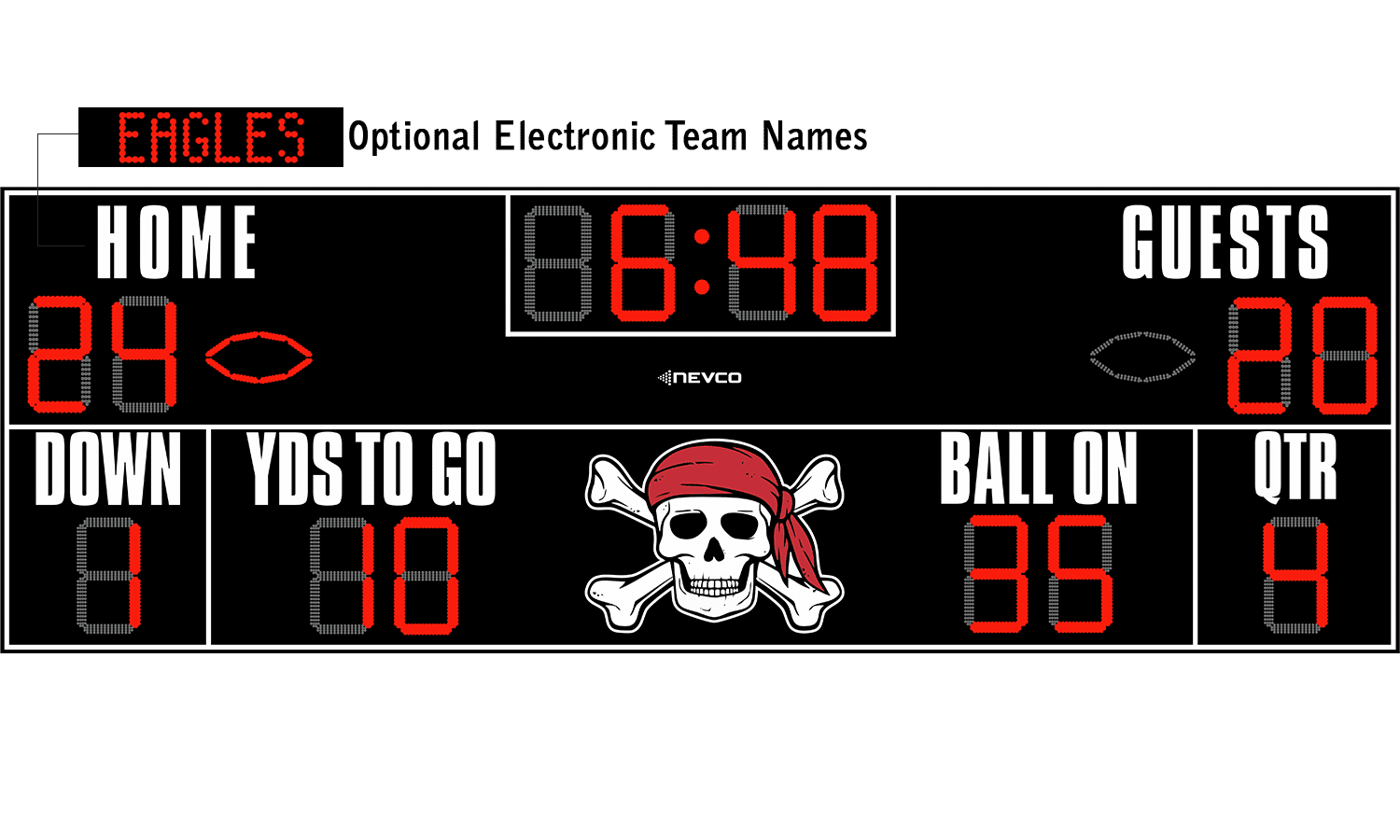

Perfect for Larger venues. Same features as the 3614, but longer in length for larger facilities. Shown with optional Electronic Team Names (ETN’s). ETN’s allow you the flexibility to customize the team name for every team that plays at your facility.
All 3600 Series boards include:
- Wide range of models to select from; select the ideal model for your facility
- Lighted time colon and decimal; automatically adjusts to 1/10th of a second
- Large digits easily seen from long distances
- White outline striping separates features for greatest readability – standard on all outdoor scoreboards
- Built-in horn
- Bright, long-lasting, energy-efficient LEDs
WEIGHT: 632 lbs.
DIMENSIONS: 24ft x 8ft x 8in
DIGIT SIZE: 24 in. High Intensity Red, Amber or Translucent White LED Digits
COLORS: Electronic Blue Semi-Gloss, Forest Green Semi-Gloss, Gray Semi-Gloss, Jet Black Semi-Gloss, Kelly Green Semi-Gloss, Maroon Semi-Gloss, Midnight Blue Semi-Gloss, Navy Blue Semi-Gloss, Orange Semi-Gloss, Purple Semi-Gloss, Red Semi-Gloss, Royal Blue Semi-Gloss, Tan Semi-Gloss, Teal Semi-Gloss, Yellow Semi-Gloss
CAPTION TYPE: Electronic Team Names (shown above) or Non-Lit Caption Plates
Specification Documents:Model 3618 Product Specs (Football) Model 3618 CSI Specs (Football, Soccer)
Installation Prints:Hanging the Cabinets Drilled Piers Installation Method Hanging the Cabinets with Laterals Drilled Piers Installation Method - Reduced Columns with Laterals Spread Footing Installation Method Spread Footing Installation Method - Reduced Columns with Laterals Spread Footing Base Plates / Anchors Spread Footing Rebar Instructions Electrical Wired Installation Print Electrical Wireless Installation Print
